QUICK-LOCK® PIER WHEEL

Our unique one-piece design installs in a snap! All our Quick-Lock® Pier Wheel products are made of durable, noncorrosive plastic. The original 6″ concrete cover pier wheel fits rebar sizes #3 through #5, and our 4″ and 8″ concrete cover pier wheels fit rebar sizes #3 through #7. All are designed to properly position a reinforcing steel cage in a drilled shaft with a concrete cover requirement, but also work for other applications where concrete cover must be maintained.

Without proper alignment, the rebar cage cannot perform the function for which it was designed. Faulty alignment can cause foundation failure, which often leads to issues of contingent liability. Because the rebar cage cannot be inspected or tested after the concrete is placed in the drilled shaft, the cage must be aligned properly the first time!

Pieresearch Quick-Lock Pier Wheel product video

Building a strong foundation is just a click away! Our quality products and simple installation enables you to save time and money on your next project. Imagine the infinite opportunities to use Quick-Lock® Pier Wheels.

Tech Specs

Quick-Lock Pier Wheel technical specs

*All Quick-Lock© Pier Wheels provide Actual Clearance. Actual Clearance or Concrete Cover is measured from the outside of the circle tie, spiral, etc. of the reinforcing steel cage to the side of the drilled shaft.

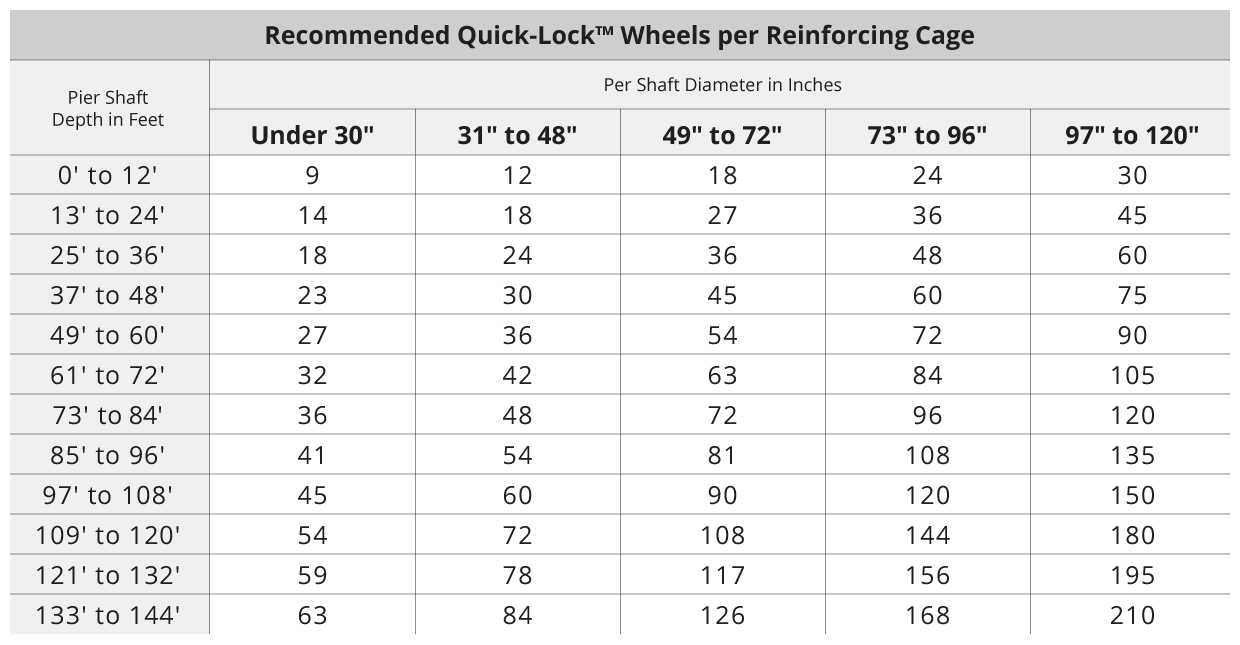

The table below illustrates the recommended number of Quick-Lock® Pier Wheels to be used on a per shaft basis. The actual number can vary subject to the number of vertical bars of the reinforcing steel cage and the weight of the cage. The structural engineer is the governing authority. When in doubt, please check with the structural engineer.

Placement Details
