QUICK-LOCKTM HD (Heavy Duty) PIER WHEEL

Our unique one-piece design installs in a snap! All our Quick-LockTM HD Pier Wheel products are made of durable, noncorrosive plastic and fit rebar sizes #3 through #7. They are designed to properly position a reinforcing steel cage in a drilled shaft, or other heavy duty applications where concrete cover must be maintained.

Without proper alignment, the rebar cage cannot perform the function for which it was designed. Faulty alignment can cause foundation failure, which often leads to issues of contingent liability. Because the rebar cage cannot be inspected or tested after the concrete is placed in the drilled shaft, the cage must be aligned properly the first time!

For construction of foundation that will withstand the test of time, use Quick-LockTM HD Pier Wheels. Our quality products and simple installation enables you to save both time and money!

Tech Specs

*Actual Clearance or Concrete Cover is measured from the outside of the circle tie, spiral, etc. of the reinforcing steel cage to the side of the drilled shaft.

**Nominal Clearance or Concrete Cover is measured from the outside of the vertical bar of the reinforcing steel cage to the side of the drilled shaft.

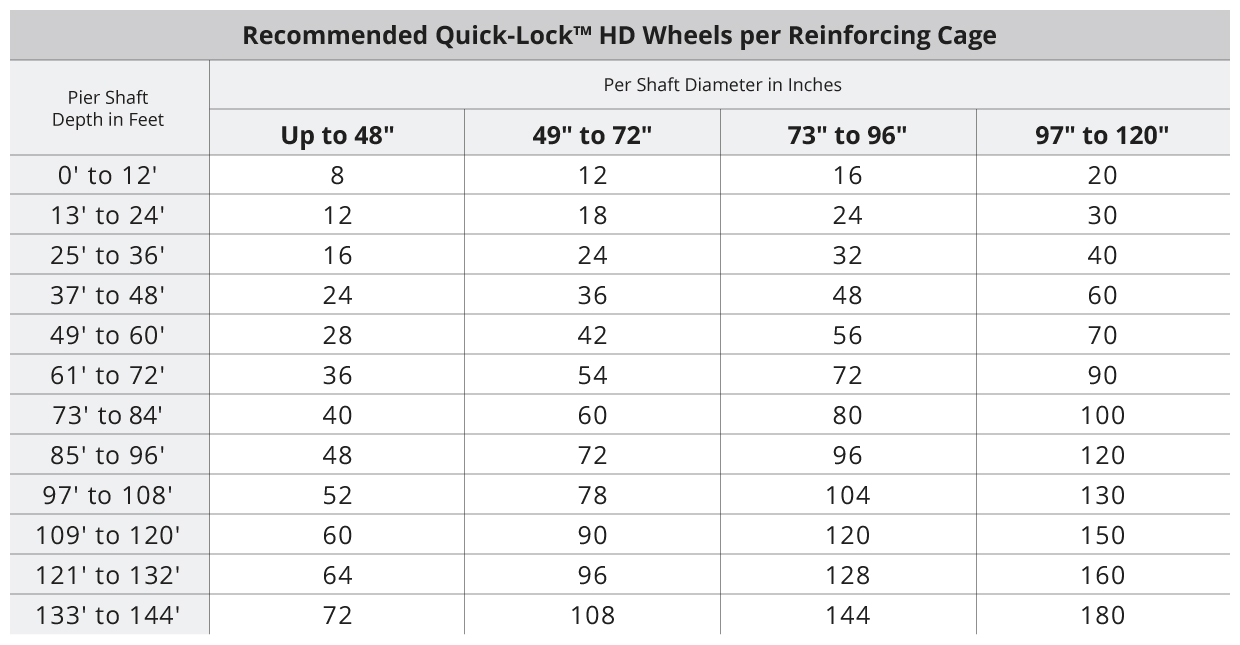

The table below illustrates the recommended number of Quick-LockTM HD Pier Wheels to be used on a per shaft basis. The actual number can vary subject to the number of vertical bars of the reinforcing steel cage and the weight of the cage. The structural engineer is the governing authority. When in doubt, please check with the structural engineer.

Quick-Lock-HD-Pier-Wheel-Usage-ChartV2
group-HD-pier-wheel

Placement Details

Product-Placement-Detail2
